DN300 UHMWPE Dredging Pipe
UHMWPE dredging pipe material is UHMWPE --- Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering thermoplastics with more than1.5 million viscosity-average molecular weight. The UHMWPE pipe is extruded out with the extruding machine with the UHMWPE raw material .
DN300 UHMWPE dredging pipe dimension:
| Outside dismeter | 360mm |
| Inside Diameter | 310mm |
| Wall thickness | 25mm |
| Length | 11.8m/unit |
| Working pressure | 1.0Mpa |
| Connection | Steel flanges |

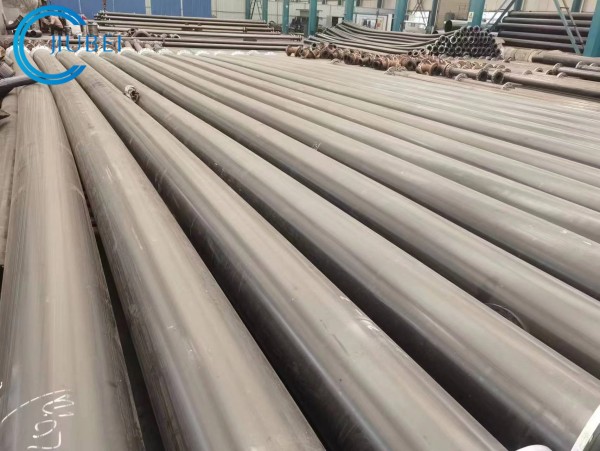

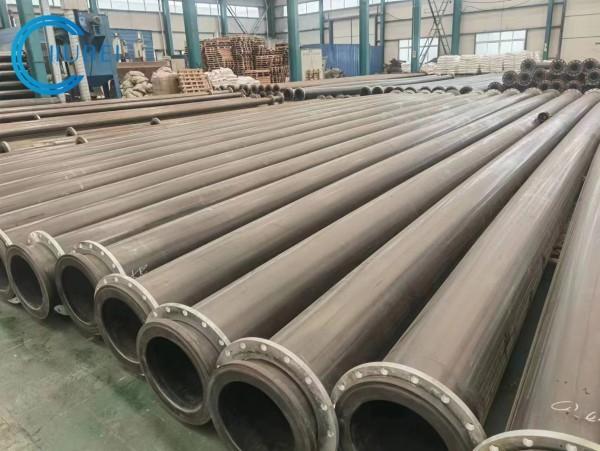

DN300 UHMWPE dredging pipe pictures:
Benefits of DN300 UHMWPE dredging pipe:
a. High Wear Resistance
High wear resistance is 4 to 7 times that of Q235 steel pipe and 2.7 times that of wear-resistant steel 16Mn.The working life of UHMWPE pipes is more than 3 times that of wear-resistant steel pipe.
b. High Corrosion Resistance
UHMWPE material structure is saturated molecular group, with great chemical stability,good resistance of various corrosion mediums(acid,alkali,salt)and organic solvents.
c. High Impact Resistance
Which is 5 times that of HDPE pipe, 2 times that of PC pipe and 10 times that of PTFE pipes. which makes UHMWPE pipe can withstand great water hammer impact when starting up pump station.
d. High Pressure Resistance
which is 2 times to that of PE100 pipe and 2.5 times to that of PE80.UHMWPE pipe can withstand wide fluctuate of water pressure in the pipeline.
e. Environment Proctection
The manufacturing and processing of wear resistant UHMWPE pipe is low carbon,without wasted water,exhausted gas and waste residue,which saves 20% energy compare with the traditional steel pipes.
f. High Flexibility
With high toughness and elongation of no less than 350%,the UHMWPE pipe and the connection site will not crack when crust settling which maximally ensure to supply water normally.
g. Non-scaling
With toughness of 0.00022 and smooth pipe inner wall, it can efficiently avoid scaling without acid cleaning,which save a lot of maintenance cost.
h. Low energy consumption
Its coefficient of friction resistance is 0.009 while that of steel pipe is 0.013. With the same diameter, flow rate of UHMWPE pipe is large than steel pipe, and with the same flow rate,UHMWPE pipe can save 25% energy.

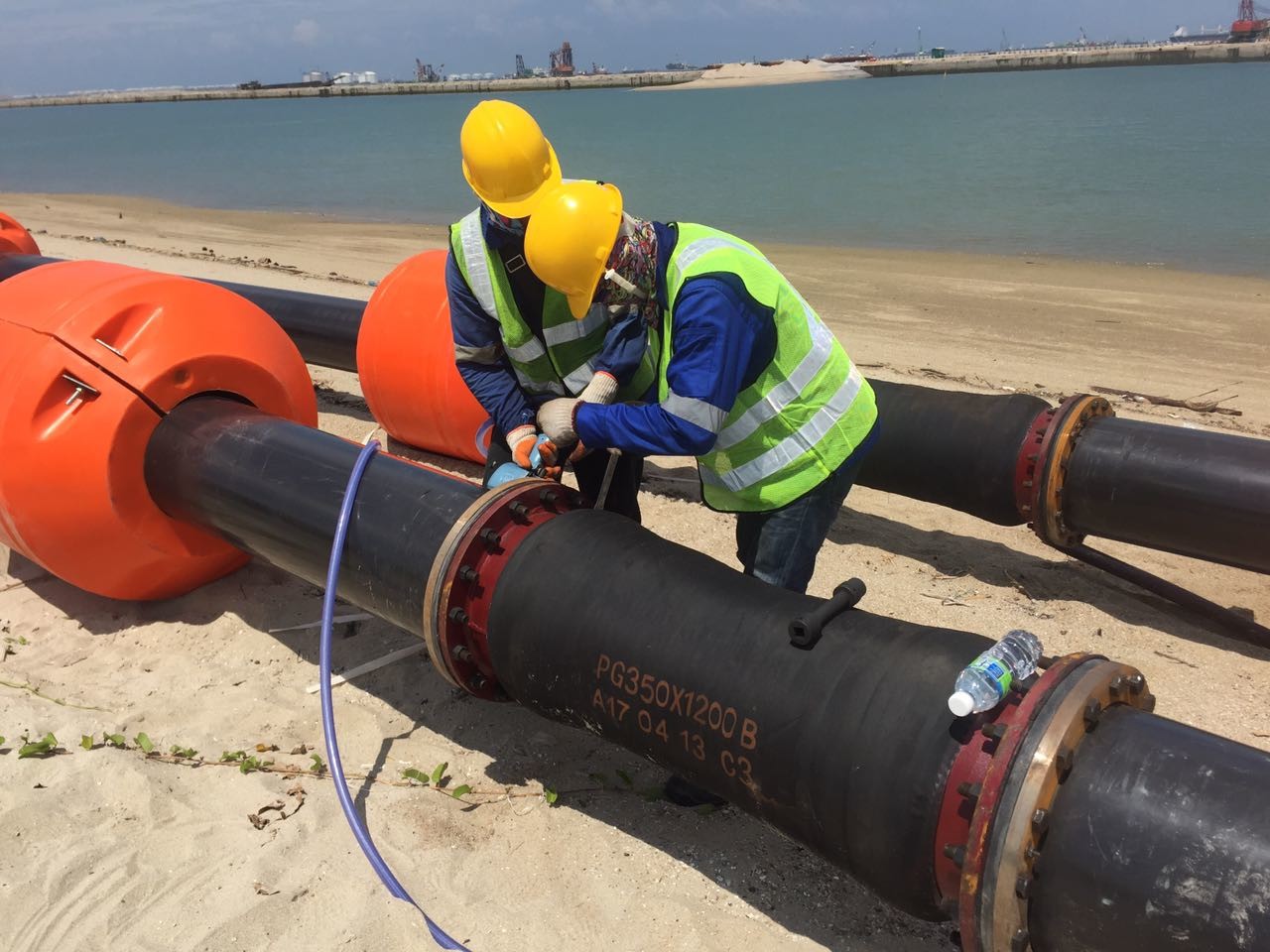

Installation of the DN300 UHMWPE dredging pipeline:
