Product Description:
.
Features:

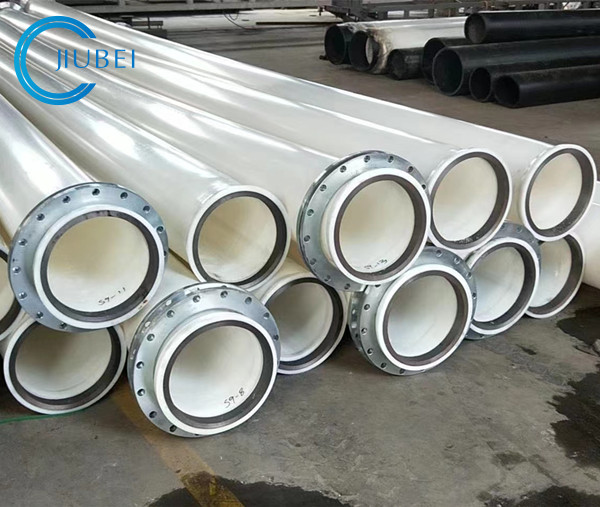

The flanged HDPE dredging pipe is designed for easy connection, effectively reducing the sways and jolts caused by waves, resulting in a smoother flow of medium through the pipes.

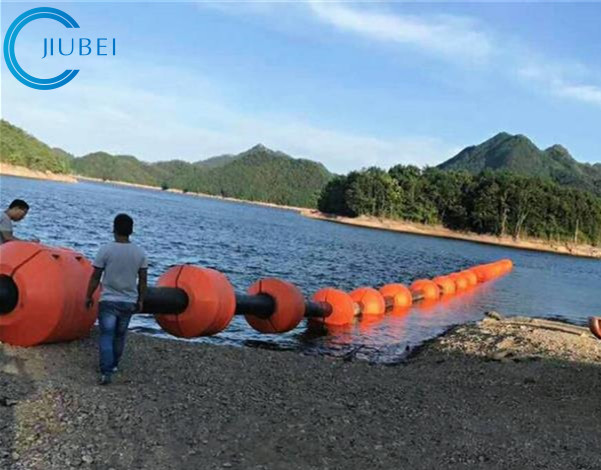

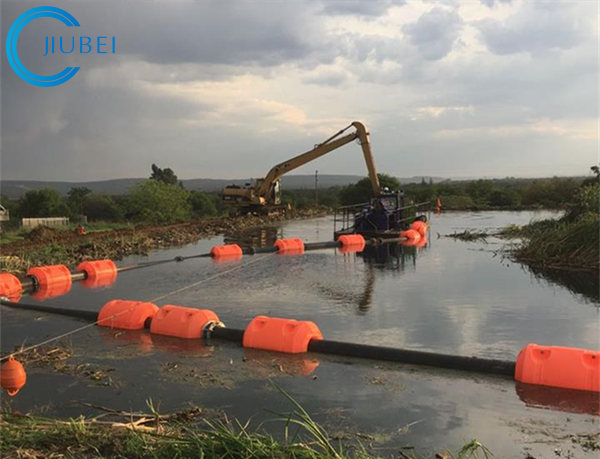

These HDPE dredging pipes are specifically intended for use in various port applications such as drainage, water-logging, dredging, and sand discharging.
Technical Parameters:
Item and Requirements for Pipe Material
No.1: Elongation at break%
The required elongation at break for the pipe material is equal or greater than 350%.
No.2: Longitudinal reversion (100℃)
The pipe material must have a longitudinal reversion rate of less than or equal to 3% when exposed to a temperature of 100℃.
No.3: Oxidation induction time (200℃)
The pipe material must have an oxidation induction time of at least 20 minutes when exposed to a temperature of 200℃.
No.4: Weather resistance
After the pipe has undergone aging energy of 3.5GJ/㎡ or more, it must meet the following requirements:
- The pipe must maintain its static hydraulic strength at a temperature of 80℃ for a minimum of 165 hours, without any breakage or leakage.
- The percentage of breaking-elongation for the pipe must be equal or greater than 350%.
- The pipe material must have an oxidation induction time of at least 10 minutes when exposed to a temperature of 200℃.
Outside Diameter(mm) | Wall thickness(mm) |
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| 0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | |
| 800 | 30.6 | 38.1 | 47.4 | 58.9 | |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | |
| 1000 | 39.2 | 47.7 | 59.3 | 73.6 | |
| 1200 | 45.9 | 57.2 | 70.6 | | |
| 1400 | 53.9 | 66.7 | 82.4 | | |
| 1600 | 61.6 | 76.2 | 94.2 | | |
Applications:
.
Customization:
Customization Service for Dredging HDPE Pipe
Brand Name: Jiubei
Model Number: DN400
Place of Origin: China
Certification: ISO, SGS
Minimum Order Quantity: 200m
Price: 15-30 usd/m
Packaging Details: STANDARD SEA WORTHY PACKAGING
Delivery Time: 15 days
Payment Terms: tt
Supply Ability: 2000M/MONTH
Color: Black With Blue Strips
Material: HDPE PE100
Flexibility: Excellent
Density: 0.945
Pressure: 0.4~2.0Mpa
Key Words: PN10 ISO4427 HDPE pipe, HDPE pipe, DN500 HDPE pipeline
